I bought a 90

Post new topic Reply to topic OZ ATV :: The Australian ATV Forum Forum Index -> 3 Wheelers
View previous topic :: View next topic
richie_supercharged
Roostin Away


Joined: 12 Apr 2010
Posts: 555
Location: Newcastle

PostPosted: Sat Dec 14, 2013 8:59 pm Post subject: I bought a 90 Reply with quote Back to top

I bought a rough 78 atc 90 and I'm not sure about the wiring.
The last owner was having trouble with it ..
Made a vid so if anyone can help me out.. I. Struggling to follow the manual and diagrams ..
Here's a video of what I've got
http://youtu.be/laExBQpJX4Y
_________________
If in Doubt.. Flat out

84 ATC 250r (290kit)
82 ATC 250r
77 ATC 90

View user's profile Send private message
Sponsor
HaggLE
Roostin Away


Joined: 16 Mar 2009
Posts: 511
Location: Newcastle

PostPosted: Sun Dec 15, 2013 7:56 am Post subject: Reply with quote Back to top

Points ignitions are simple.
Components are:
Coil
Condenser
Points
Stator

Optional:
Kill switch Smile

Each component has 1 wire, here's the complicated part... Join the all together!

The stator you have two wires, black and a yellow. Black is ignition, yellow is lights.

For the kill switch, 1 wire goes into the ignition wiring, the other to ground. Simple.

The points should be set to 0.5mm at maximum opening as a good start to get a spark, might come back to 0.4mm.

Now, what's with that coil? Is it definitely for a points ignition? A cdi coil or a electronic ignition coil will not work. I recommend getting a stock coil.

View user's profile Send private message
richie_supercharged
Roostin Away


Joined: 12 Apr 2010
Posts: 555
Location: Newcastle

PostPosted: Sun Dec 15, 2013 9:50 am Post subject: Reply with quote Back to top

Cheers mate
He said he got the coil from atc heaven

It's on the bottom of this page
http://www.atcheaven.com/Electrical_coil.php
_________________
If in Doubt.. Flat out

84 ATC 250r (290kit)
82 ATC 250r
77 ATC 90

View user's profile Send private message
HaggLE
Roostin Away


Joined: 16 Mar 2009
Posts: 511
Location: Newcastle

PostPosted: Sun Dec 15, 2013 3:59 pm Post subject: Reply with quote Back to top

You might notice the models listed are all cdi... Get a stock one

View user's profile Send private message
richie_supercharged
Roostin Away


Joined: 12 Apr 2010
Posts: 555
Location: Newcastle

PostPosted: Sun Dec 15, 2013 5:40 pm Post subject: Reply with quote Back to top

HaggLE wrote:
You might notice the models listed are all cdi... Get a stock one


The one I've got is the universal wich doesn't have anything list..
But I do have the stock one so il thro it on ..
The issue could be the points
_________________
If in Doubt.. Flat out

84 ATC 250r (290kit)
82 ATC 250r
77 ATC 90

View user's profile Send private message
HaggLE
Roostin Away


Joined: 16 Mar 2009
Posts: 511
Location: Newcastle

PostPosted: Sun Dec 15, 2013 7:17 pm Post subject: Reply with quote Back to top

Don't dismiss a busted condenser though... Just buy a car one, cheaper and same.

http://bit.ly/1kLzD8H

View user's profile Send private message
richie_supercharged
Roostin Away


Joined: 12 Apr 2010
Posts: 555
Location: Newcastle

PostPosted: Mon Dec 15, 2014 6:25 am Post subject: tank resto Reply with quote Back to top

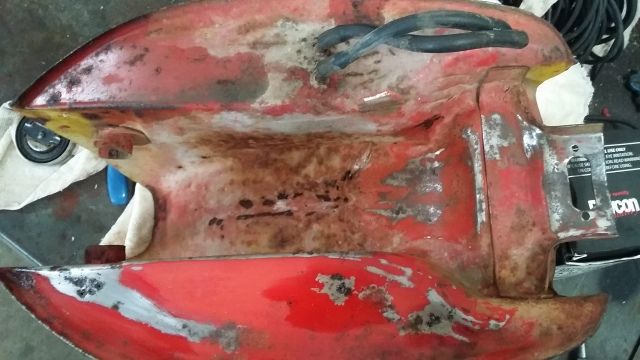

I'm trying to restore this tank rather than spend $100+ and buy another one,
The top is fine just a medium sized shallow dent with should smooth out, inside is great for the age but underneath has some rust . After sanding back these sections the I've found the rust has gone through and the metal is quite soft , I've been able to push pin holes in them.
I'm thinking either metal putty them up with DEVCON or weld, then acid wash and seal the inside.
Metal putty would be easier but I'm not sure how it would hold up with the vibrations off road.
Any one have any ideas?


_________________
If in Doubt.. Flat out

84 ATC 250r (290kit)
82 ATC 250r
77 ATC 90

View user's profile Send private message
driftingbanshee
Blaster class


Joined: 15 Oct 2013
Posts: 185
Location: Central Coast

PostPosted: Mon Dec 15, 2014 8:18 am Post subject: Reply with quote Back to top

metal putty will be fine richie aslong as you prep it properly first. strip it back to bare metal where you want to add the putty then mould it in. Go a touch bigger than the area that is affected aswell.

View user's profile Send private message
richie_supercharged
Roostin Away


Joined: 12 Apr 2010
Posts: 555
Location: Newcastle

PostPosted: Thu Jan 29, 2015 7:58 pm Post subject: Reply with quote Back to top

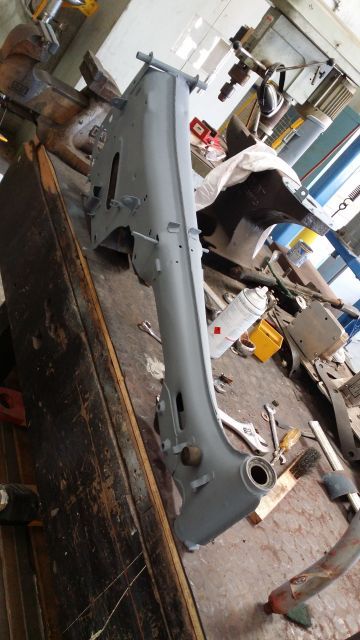

Some progress










_________________
If in Doubt.. Flat out

84 ATC 250r (290kit)
82 ATC 250r
77 ATC 90

View user's profile Send private message
greenhuman
Roostin Away


Joined: 12 Feb 2006
Posts: 980

PostPosted: Sat Jan 31, 2015 7:57 pm Post subject: Reply with quote Back to top

As far as the pin holes in the tank goes, rough up the around the holes with 100 grit sandpaper then clean off with acetone and let dry. Drip some 5 minute araldite on the holes and repeat where needed. Just let itself spread out to a natural flowing edge.

View user's profile Send private message Visit poster's website
richie_supercharged
Roostin Away


Joined: 12 Apr 2010
Posts: 555
Location: Newcastle

PostPosted: Wed Apr 08, 2015 5:33 pm Post subject: Reply with quote Back to top

Going back together Cool




Waiting on a throttle cable and shift shaft from the states.
_________________
If in Doubt.. Flat out

84 ATC 250r (290kit)
82 ATC 250r
77 ATC 90

View user's profile Send private message
driftingbanshee
Blaster class


Joined: 15 Oct 2013
Posts: 185
Location: Central Coast

PostPosted: Thu May 07, 2015 12:23 pm Post subject: Reply with quote Back to top

looking good man but dont you think you are a bit big for a 90? Razz Razz

View user's profile Send private message
121fred
50cc nipper


Joined: 21 Mar 2013
Posts: 9

PostPosted: Tue Apr 30, 2019 11:36 am Post subject: Reply with quote Back to top

What is the yellow paint colour you used

View user's profile Send private message
richie_supercharged
Roostin Away


Joined: 12 Apr 2010
Posts: 555
Location: Newcastle

PostPosted: Tue Apr 30, 2019 9:58 pm Post subject: Reply with quote Back to top

Spray can

White knight - Rust guard
Golden Yellow

I bought it at Bunnings
_________________
If in Doubt.. Flat out

84 ATC 250r (290kit)
82 ATC 250r
77 ATC 90

View user's profile Send private message
