 Posted: Sun Aug 30, 2009 7:03 pm Post subject: 250R Inverted Fork Conversion |
  |
|

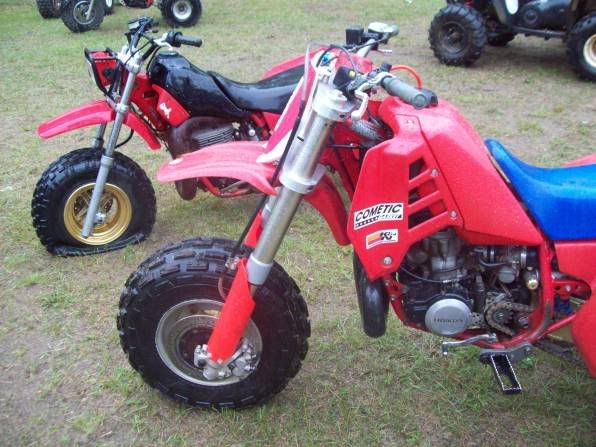

I saw this nice inverted fork converted R when i was in Michigan, very professional job.
_________________
1989 TRX 250R |
|
| |
|
|
|
|
|
|
|
|
Sponsor
|
|
|
|
|
|
|
|
|
ForeverThreeWheels
The Day Starts With OZATV !
Joined: 18 Nov 2008
Posts: 1742
Location: Maitland
|
| Posted: Mon Aug 31, 2009 2:00 am Post subject: |
|
|
Is that Jason Halls sons bike?
_________________
Last edited by ForeverThreeWheels on Mon Aug 31, 2009 12:34 pm; edited 1 time in total |
|
| |
|
|
|
|
|
|
|
|
Aussieduner
Moderator
Joined: 05 Sep 2006
Posts: 1458
Location: New South Wales
|
| Posted: Mon Aug 31, 2009 11:20 am Post subject: |
|
|
| ForeverThreeWheels wrote: | | Is that Dave Halls sons bike? |
Yep sure is and i had a good look at his 450 conversion, also a nice machine.
T
_________________
1989 TRX 250R |
|
| |
|
|
|
|
|
|
|
|
Jason Hall
50cc nipper
Joined: 19 Sep 2008
Posts: 5
|
| Posted: Mon Aug 31, 2009 11:22 am Post subject: |
|
|

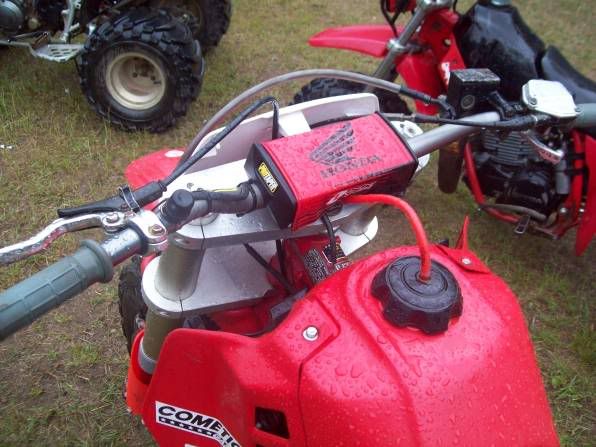

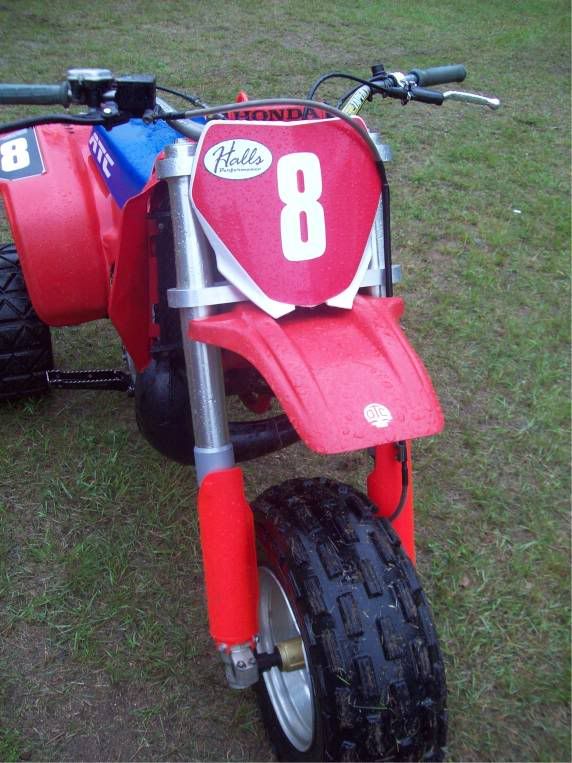

Thanks for posting up the Pic's of the Triple Clamp's and fork setup on our R Tony.
ForeverThreeWheels
That Is my Boys R, the one we recently updated the rear suspension on  |
|
| |
|
|
|
|
|
|
|
|
ForeverThreeWheels
The Day Starts With OZATV !
Joined: 18 Nov 2008
Posts: 1742
Location: Maitland
|
| Posted: Mon Aug 31, 2009 12:37 pm Post subject: |
|
|
| Jason Hall wrote: |
ForeverThreeWheels
That Is my Boys R, the one we recently updated the rear suspension on |
Yep, i know the one. I thought i recognised your work Jason. Its very distinct. Good stuff!
_________________
|
|
| |
|
|
|
|
|
|
|
|
Jason Hall
50cc nipper
Joined: 19 Sep 2008
Posts: 5
|
| Posted: Mon Sep 21, 2009 9:40 am Post subject: |
|
|

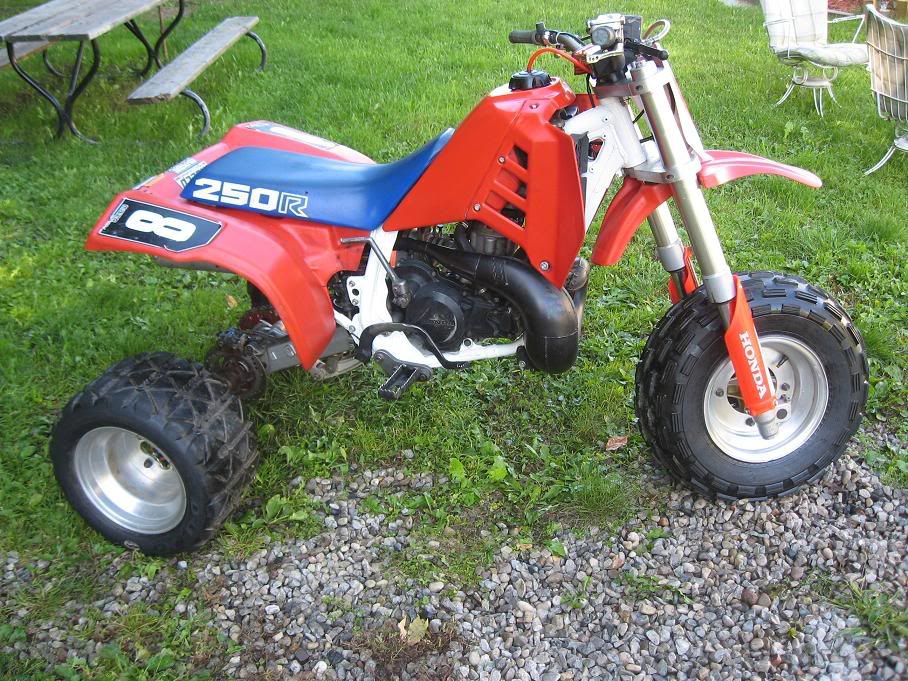

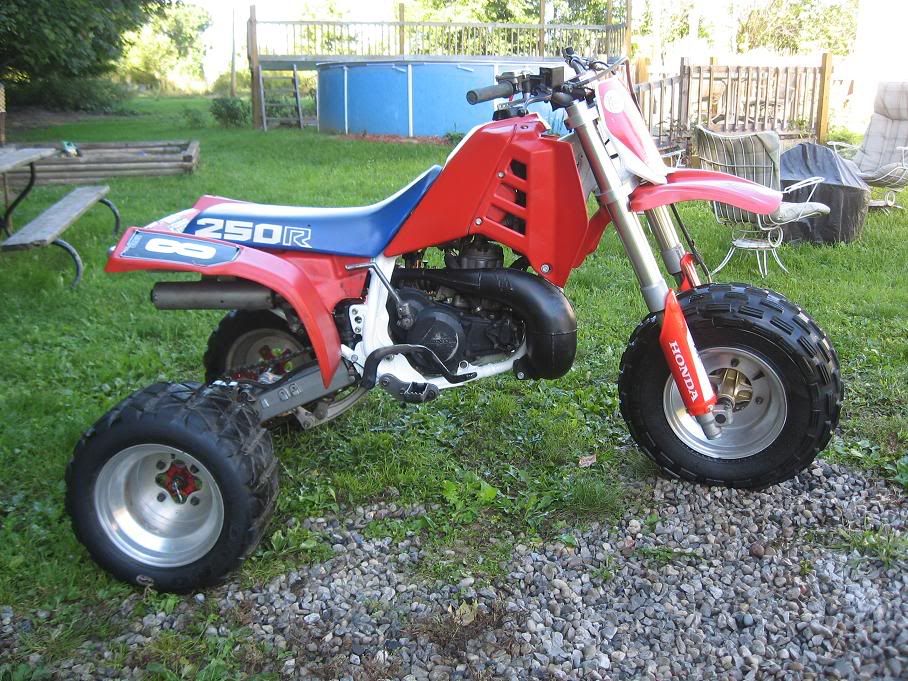

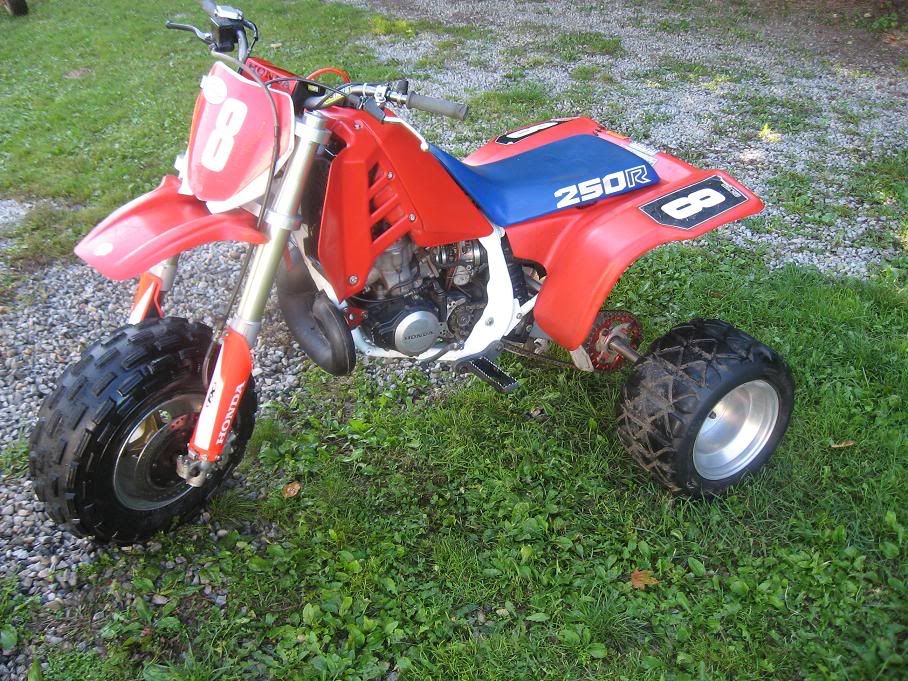

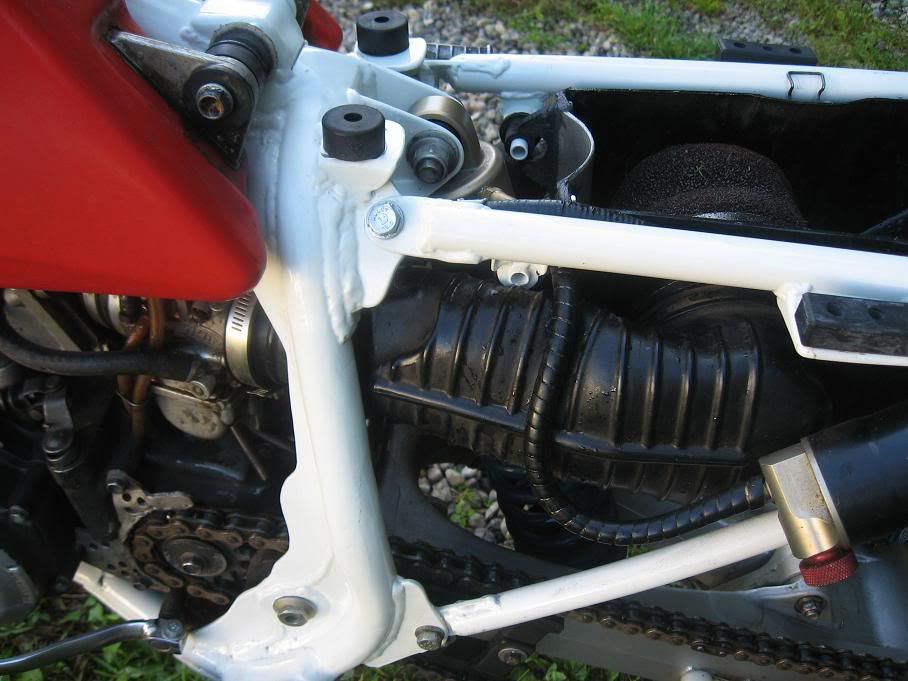

A few pic's of the R finished. Well other than some new rear fenders  The rear suspension Is done, along with the 450r pegs. The rear end now has 12" of travel, thanks to a 18.5" YFZ Axis shock. Now the rear Is adjustable and smooth like the front end
Last edited by Jason Hall on Mon Sep 21, 2009 9:44 am; edited 1 time in total |
|
| |
|
|
|
|
|
|
|
|
ForeverThreeWheels
The Day Starts With OZATV !
Joined: 18 Nov 2008
Posts: 1742
Location: Maitland
|
| Posted: Mon Sep 21, 2009 9:42 am Post subject: |
|
|
Damn that looks so factory. I really like that. Matter of fact, i just finished saving pics of that from .org to my computer!
_________________
|
|
| |
|
|
|
|
|
|
|
|
Jason Hall
50cc nipper
Joined: 19 Sep 2008
Posts: 5
|
| Posted: Mon Sep 21, 2009 9:46 am Post subject: |
|
|
| SWEET, Thanks buddy glad you like It |
|
| |
|
|
|
|
|
|
|
|
ForeverThreeWheels
The Day Starts With OZATV !
Joined: 18 Nov 2008
Posts: 1742
Location: Maitland
|
| Posted: Mon Sep 21, 2009 9:50 am Post subject: |
|
|
| Jason Hall wrote: | | SWEET, Thanks buddy glad you like It |
Hell Yeah, i also got an email from a guy on another site yesterday. He heard that i made triple trees etc, i dont but i told him i knew someone who does and i gave him your name. Hope thats cool.
_________________
|
|
| |
|
|
|
|
|
|
|
|
Jason Hall
50cc nipper
Joined: 19 Sep 2008
Posts: 5
|
| Posted: Mon Sep 21, 2009 10:58 am Post subject: |
|
|
No problem, It's cool with me.
Thanks
Jason |
|
| |
|
|
|
|
|
|
|
|
BC250R
Joined: 23 Jan 2007
Posts: 375
Location: Stockton Dunes if i'm lucky
|
| Posted: Wed Sep 23, 2009 7:51 pm Post subject: |
|
|
Hi Jason,
I ve read through a few posts on 3ww about USD conversions but i'm still a bit lost as to what fork legs to use. I saw one set up i think was using KTM85 legs as they were a good length but a bit soft and another that used a shortened 250 leg. What have you used and could you list the parts needed other than your tripple clamps to do the conversion.
I've had the 450r rear end in my 250r for some time now, i gave up trying to make everything fit with the 450r shock so i ditched it in favour of a Fox podium X out of a predator 500 (comes standard) in a no link set up.
the rear end is so good i keep blowing out my 250r forks looking for bigger bumps to enjoy the rear on!
I need the front to match so any help, and a price on the tripple clamps, would be good, Cheers BC
_________________

Technical info thread
http://www.ozatv.com/forum/viewtopic.php?t=4425 |
|
| |
|
|
|
|
|
|
|
|
stitch250R
4fiddy Racer
Joined: 30 Dec 2006
Posts: 260
|
| Posted: Wed Sep 23, 2009 10:30 pm Post subject: |
|
|
| ^^^from all reports the shortened CR250 forks seem to be the go. |
|
| |
|
|
|
|
|
|
|
|
Jason Hall
50cc nipper
Joined: 19 Sep 2008
Posts: 5
|
| Posted: Thu Sep 24, 2009 11:28 am Post subject: |
|
|
The KTM85SX forks are the easiest, and can be made stiff enough with some .44KG - .46KG spring's, along with valving changes. They have 43mm tube's, which are Plenty big enough. The last couple sets were Installed with .44KG spring's, I felt they were just a bit soft for bigger jumps. The 85SX forks have 10.5" of travel, so that Is pretty good travel. Valving Is KEY In setting these forks up to to make the rider comfortable. I can help you through that also If needed.
The cr125/250/500 forks work very nice also, but need to be shortened to work correctly with the 250R frame geometry. There are certain forks that need to be used, and at 300.00 to shorten them correctly It's hard to make It worth the trouble. 01 CR500 forks are one of the better forks to shorten because of the way the seal collars are Installed, and the upper aluminum tube's are not stepped at the location where they are clamped In the triple's. KYB's are the best one's, but If you decide to use those, PM me a link so I can look at them closely, because some are still not able to be used because of the steps In the upper tube's.
The price for the standard KTM setup Is 500 USD. That kit Include's the triple clamp's, a custom built axle and spacers to use your stock R hub. It also Include's a brake rotor adaptor to run the 85SX rotor and calipar. The kit come's ready to bolt on with all the needed bolts. The only difficult part Is pressing out your stock R steering stem and pressing It back Into the new lower clamp. I also suggest new steering head bearing's when Installing the parts on your bike. If you send me a stock R lower clamp I will press out the steering stem and press It back In the new lower clamp free of charge.
You will need to get the forks 02-06 KTM 85SX.
02-06 KTM85SX calipar and front brake rotor.
You also need Universal handlebar mounts (Houser style trx450r, or Pro Taper).
If you decide to shorten full length forks, you will need the Brake rotor and Calipar that matches those forks.
Thanks
Jason |
|
| |
|
|
|
|
|
|
|
|
BC250R
Joined: 23 Jan 2007
Posts: 375
Location: Stockton Dunes if i'm lucky
|
| Posted: Fri Oct 02, 2009 12:49 pm Post subject: |
|
|
Thanks Jase, you've covered all my questions, i think i'll try and track down the KTM parts then i'll be in touch.
Cheers, BC
_________________
Technical info thread
http://www.ozatv.com/forum/viewtopic.php?t=4425 |
|
| |
|
|
|
|
|
|
|
|
Devil250R
50cc nipper
Joined: 24 Mar 2011
Posts: 7
Location: United States
|
| Posted: Fri Apr 15, 2011 2:14 am Post subject: |
|
|
| Wher can you find the .46KG springs? |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
